Description

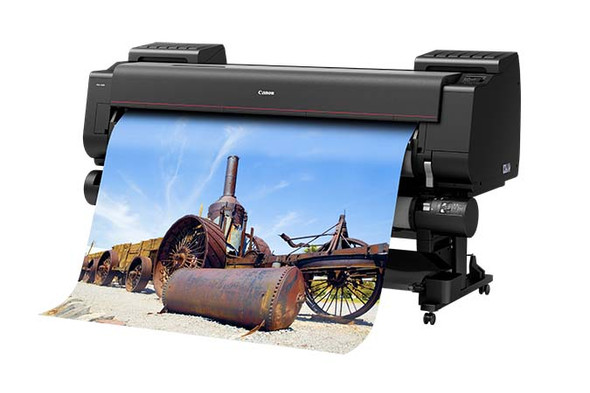

Canon imagePROGRAF PRO-6600
Exceptional Quality, Precise Reproduction & Extraordinary Colors with the imagePROGRAF PRO-6600
The imagePROGRAF 60” PRO-6600 Large Format Printer offers an 11-color plus Chroma Optimizer ink system that can bring your prints and reproductions to life. Color calibration and intelligent media handling technologies come together to create photo and fine art prints with exceptional print quality.
Specifications
Canon products offer certain security features, yet many variables can impact the security of your devices and data.
Canon does not warrant that use of its features will prevent security issues.
Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own
qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security
features may impact functionality/performance; you may want to test these settings in your environment.
As an ENERGY STAR ® Partner, Canon U.S.A., Inc. has qualified these models as meeting the ENERGY STAR energy efficiency
criteria through an EPA recognized certification body. ENERGY STAR and the ENERGY STAR mark are registered trademarks
owned by the U.S. Environmental Protection Agency. Canon and imagePROGRAF are registered trademarks of Canon Inc. in the
United States and may also be registered trademarks or trademarks in other countries. Wi-Fi is a registered trademark of the Wi-Fi
alliance. All other referenced product names and marks are trademarks of their respective owners. All printer output and screen
images are simulated. Specifications and availability subject to change without notice. Not responsible for typographical errors.
©2024 Canon U.S.A., Inc. All rights reserved.
12/23-2558-10035
Print Head
PF-10
Number of Nozzles
1,536 nozzles × 12 colors: 18,432 nozzles
Minimum Droplet Size
4 pl per color
Ink Type
Pigment: PBK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, +CO
Ink Tank
Shipped with printer: 330 ML Tank of each color
Replacement: 160 ML PFI-3100 (PBK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 160 ml PFI-2100
(MBK), 330 ML PFI-3300 (PBK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 330 ml PFI-2300 (MBK),
700 ML PFI-3700 (PBK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 700 ml PFI-2700 (MBK)
Printer RAM
Standard Memory: 3 GB
Hard Disk: 500 GB
Media Feed
Front-Loading Roll Feed: Two* Rolls, Front Output
Media Width
Roll Feed: 6” - 60” (152.4 mm - 1,524 mm)
Cut Sheet: 6” - 60” (152.4 mm - 1,524 mm)
Media Cutter
Automatic horizontal cutting (Rotary cutter): standard
Media Thickness
0.002” - 0.03” (0.07 mm - 0.8 mm)
Media Core Sizes
2” Core Standard. 2”/3” Core Roll Holder Set (RH2-66)
Maximum Roll Outer Diameter
6.7” or less (170 mm or less)
Media Output
Catch Basket
Printing Software Utilities
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout
Plus, imagePROGRAF Printer Driver for Windows®
/Mac®, Media Configuration Tool,
PosterArtist, Canon Print Service, Professional Print & Layout, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 13
Print Language
Printer: SGRaster (Swift Graphic Raster), PDF, JPEG
Interface
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX,
Wireless LAN (IEEE 802.11 b/g /n) ■
Power Supply
AC 100 – 240V (50 – 60 Hz)
Power Consumption
Max: Approx 85W
Standby: Approx. 1.7W
Power Off: Approx 0.1W
Certifications
Environmental Certifications
ENERGY STAR® (Worldwide), EPEAT Gold
Operational Environment
Temperature: 59 – 86 °F (15 – 30 °C)
Relative Humidity: 10 – 80% (Non Condensation)
Printer Dimensions (W x D x H) and Weight
(with stand and basket open) 78.7” x 38.7” x 46”, 377 lbs
Package Dimensions (W x D x H) and Weight
(main unit with pallet) 87.7” x 36.0” x 40.4”, 489.4 lbs
Multifunction Roll Unit (physically strapped to printer) 84.0” x 22.1” x 18.1”, 92.6 lb
Options
• 2”/3” Roll Holder Set (RH2-66)
User Replaceable Items
• Ink Tank: PFI-3100 (160 ml)/PFI-2100 MBK (160 ml), PFI-3300 (330 ml)/ PFI-2300
MBK (330 ml), PFI-3700 (700 ml)/PFI-2700 MBK(700 ml)
• Print Head (PF-10)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)
What’s In The Box
Printer, Multifunction Roll Unit, 330 ml Starter Ink Tanks, 1 Print Head, Maintenance
Cartridge (Installed), 2” Roll Holder with 3” Adapters, Installation Guide, User
Registration Card, One Year Printer Warranty Statement, Print Head Warranty
Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice
Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port
(High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in)
■ Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless
performance may vary based on terrain and distance between the printer and wireless network clients.
* If Multifunction Roll is used.
